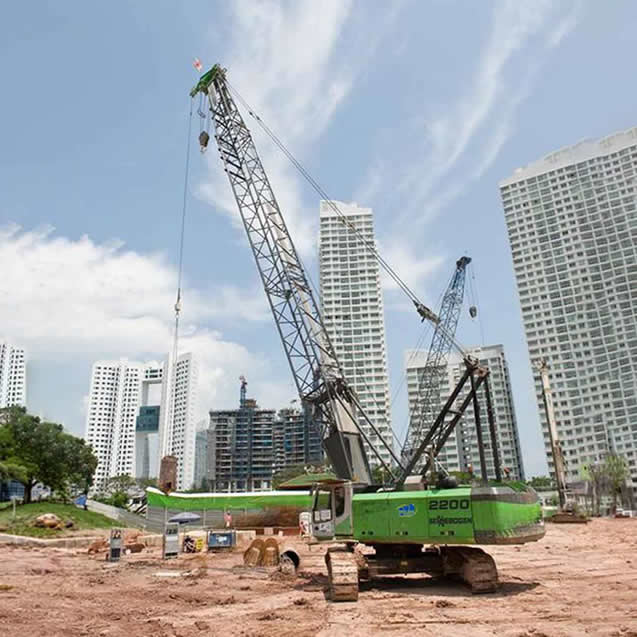

CRAWLER CRANE 2200 G

HIGH-​PERFORMANCE CRAWLER CRANE FOR EFFECTIVE LIFTING JOBS

Thanks to a strong winch and high cable speeds, the SENNEBOGEN 2200 G crawler crane offers abundant reserves of energy. Its telescopic crawler undercarriage ensures optimum stability and high load capacities and at the same time guarantees ease of transport.

Flexible all-rounder for every application

• Lifting jobs up to 80 t
• Interesting all-rounder for the prefabricated industry: can perform all lifting, transporting and assembly tasks on the construction site

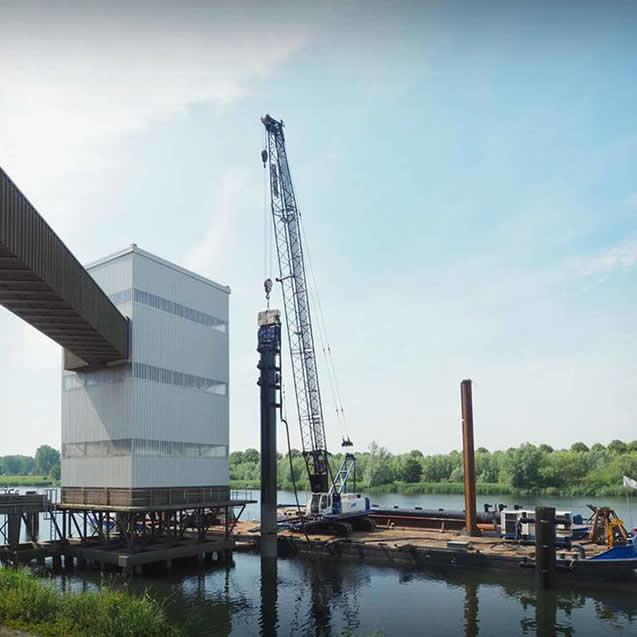

• Can be used with vibrator attachment in special civil engineering, for example, or on a pontoon for hydraulic engineering

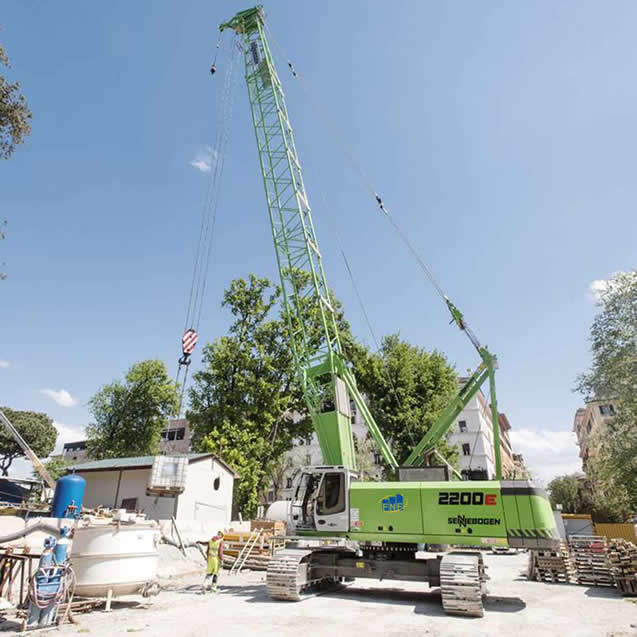

Ideally suited to industrial and prefabricated construction

• Depending on the configuration, it can move loads of up to 5.5 t within a working radius of 27 m
• Thanks to sensitive steering, assembly of components with millimeter precision is possible
• Lattice boom can be customized from 12.1 m to 59.7 m using the proven SENNEBOGEN modular system

Effective crawler crane: Abundant energy reserves and easy to transport

• High-performance: CAT diesel engine with 186 kW / 253 hp - 200, tier 3b/4i
• Telescoping undercarriage: Stabilizer width of 5 m, track width of 4.2 m (external width of 5 m with 800 mm base plates)
• Winches: two 120 kN winches (1st position) with cable speeds of up to 125 m/min
• Easy maintenance: central and comfortable access to maintenance points
• Comfort Maxcabfor relaxed working over long periods and best view (optional: adjustable cab elevation)
