DUTY CYCLE CRANE 6100 E
DUTY CYCLE CRANE WITH 100 T LOAD CAPACITY
The new SENNEBOGEN 6100 E, a duty cycle crane in the current E series, has been designed with challenging, dynamic applications in mind. The 100-ton machine is particularly well suited to special civil engineering applications with its robust construction, high-performance multi-circuit hydraulic system and strong rotary drive. It can operate just as reliably with a leader or diaphragm wall grab or operating a hydraulic casing machine with rope grab when constructing wells or in specialized below ground construction. With a wide range of equipment solutions, the SENNEBOGEN 6100 E can be configured to meet individual customer requirements.
Specialist field: Special civil engineering & extraction
- For casing machines and pile grabs up to DN 3000

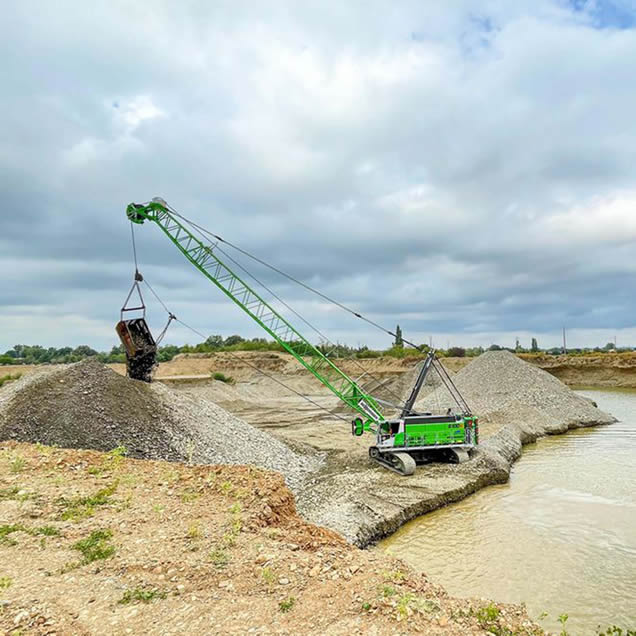

- For dragline buckets up to 4.1 m³
- For diaphragm wall grabs up to 27 t grab weight
- For material handling with clamshell or orange peel grab
- For lifting work up to 100 t
- For below ground construction with a leader
- For dynamic ground compaction
- Main boom length: 69.1 m
Operator safety
- Numerous walkway options available
- Fall arrester on the boom
- Continuous uppercarriage railing
Versatile in operation and easy transport
- Different track widths easily achieved with telescopic crawler undercarriages: For transport, the width of the telescopic undercarriage can be easily narrowed to less than 3.5 meters.
- Transport weight can be reduced to under 41 t.
- Thanks to the innovative self-assembly system, the machine can assemble itself on site: You do not need any additional equipment!
