ORV 200 – HYDRAULIC COMPACTOR GARBAGE TRUCK BODY

ORV 200 hydraulic garbage compactor body is designed for easy maintenance on narrow roads with relatively small vehicles. The vehicle must have a power take-off (PTO). This truck is suitable for 4x2 or 4x4 vehicles with a gross load capacity between 7 and 15 tons and the required wheelbase for this series.

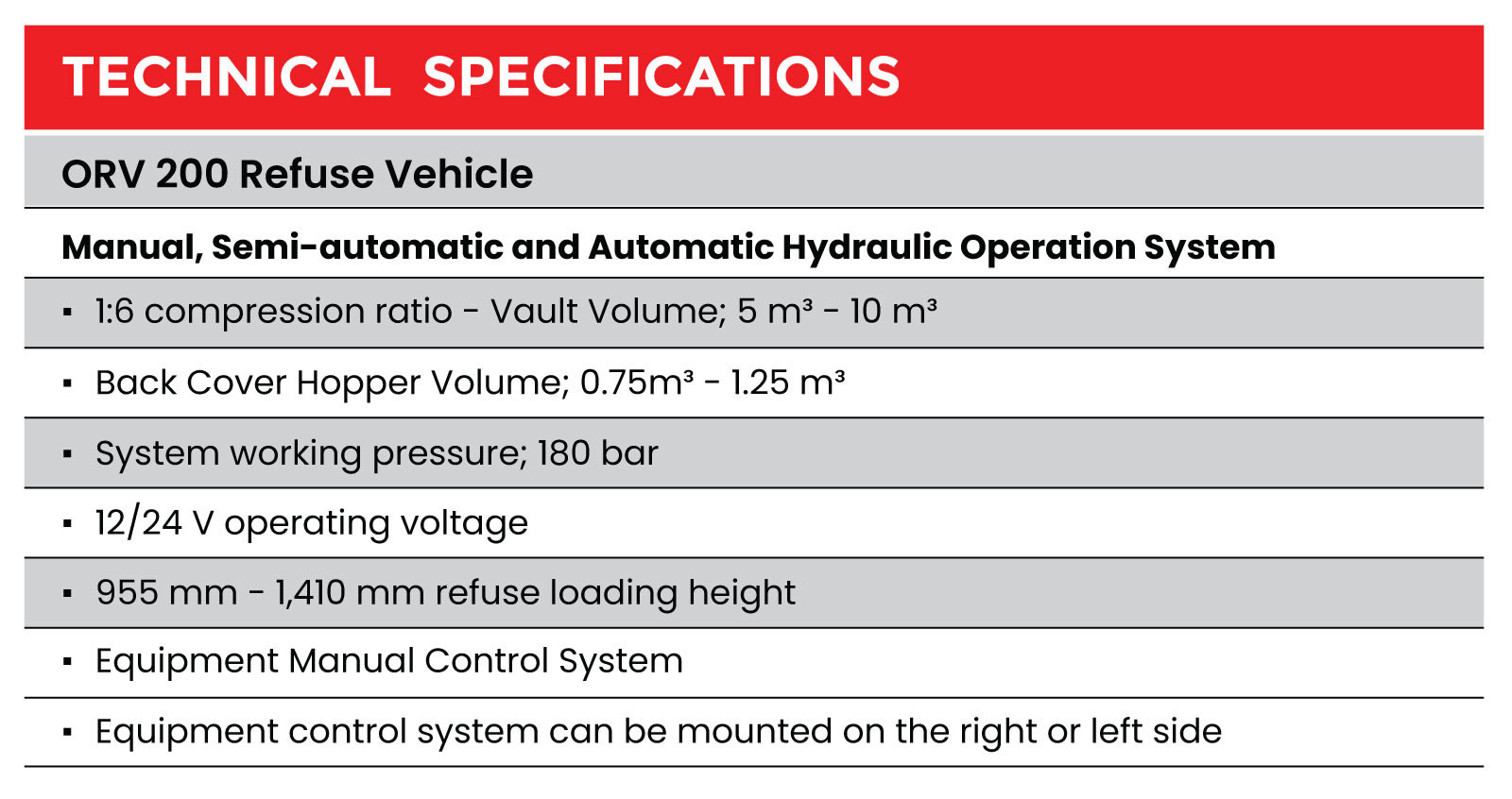

Manual, Semi-automatic and Automatic Hydraulic Operation System
- 1:6 compression ratio
- Vault Volume; 5 m³ - 10 m³
- Back Cover Hopper Volume; 0.75m³ - 1.25 m³
- Liftgate

Production in accordance with EN 1501 standards

- Waste water tank

- Use of "Gear Pump" resistant to high pressures

- System working pressure; 180 bar

- Cycling Barrier

- Mudguard

- Personnel Transportation Steps

- 12/24 V operating voltage

- 955 mm - 1,410 mm refuse loading height

- Driver Warning System - Stop Lamps

- Side Cigar Lamp

- Hopper Lighting (Night operation) Lamp
